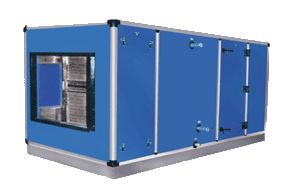

RAPL Double Skin AIR HANDLING UNITS are most versatile and quality product in HAVC. Now, Air Handling units plays an important role in overall performance of HVAC systems. In view of all the oritifal & practical problems � RAPL has developed double skin suitable for multiple applications. Self supporting extruded aluminum framework with injected PUF insulated panels provide strength & rigidity. Precoated /Powder coated panels make RAPL AHUs exceptionally attractive & unique.
RAPL AHU's are ranging from 500 cfm to 29000 cfm. Base unit consists of fan section, Coil section, filter Section and Mixing Box. Additional sections can be provided on request. |
| FAN SECTION |
FILTER SECTION |
| • |
All sections are made out of hollow extruded aluminium profile with pressure die cast/plastic jointer. |
• |
Factory supplied pre filter upto 10-1 5 micron. |
| • |
Double skin 25 mm thick PUF injected sandwich panels. |
• |
High efficiency bag type, box type and hepa type filter are available. |
| • |
Precoated / Powder coated sheets in CRCA / GI/ Aluminium / S.S. Construction. |
• |
Filter are fixed to counter frames with sealing gasket which prevent any leakage. |
| • |
Forward / Backward curved fans with st. Pressure from,1 " to 6 and above. |
|
|
| • |
Drive package an electric motor as an option. |
|
|
