HORIZONTAL VERTICAL LAMINAR FLOW

CRE make LAF Units are designed to provide a work area free from airborne particles. Completely self-contained units; not dependent on other equipments, functions effectively in uncontrolled areas. CRE Laminar air flow horizontal/vertical benches are designed to provide class I 00 air at work stations.

Gasketing and fastening devices assure a non-leaking filter installation. Unit is standard without a work surface. Work surface can be provided.

FEATURES
  • Constructed in SS304 / SS316.
  • Cleanliness Class I 00
  • Velocity:90 fpm (+/-20%).
  • S. S. Table etc.
  • Caster wheel lockable
  • Side panel Acrylic/poly carbonate.
  • Hour meter for U.V. light.
  • Imported mini pleat separatorless HEPA filter
  • Magnehelic Gauges.
  • Fluorescent lights.

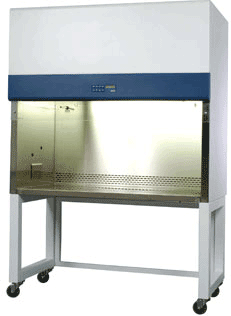

VERTICAL LAMINAR FLOW

CRE make Ceiling suspended Vertical Laminar Air Flow units provides Class 100 air at workstation.It can be mounted on ceiling if the ground space is not enough to install the bench.

Standard Size Overall Size
Air Flow CFM Filter Size L D H
(300-400) 610x610x75 mm 675x 1025x 1600
(580-600) 760x610x75 mm 975x 1025x 1600
(750-800) 1220x610x75 mm 1275x 1025x 1600
FEATURES
Constructed in SS 304 /SS316. Magnehelic Gauges. Velocity:90 fpm (+/-20%).
